Product Description

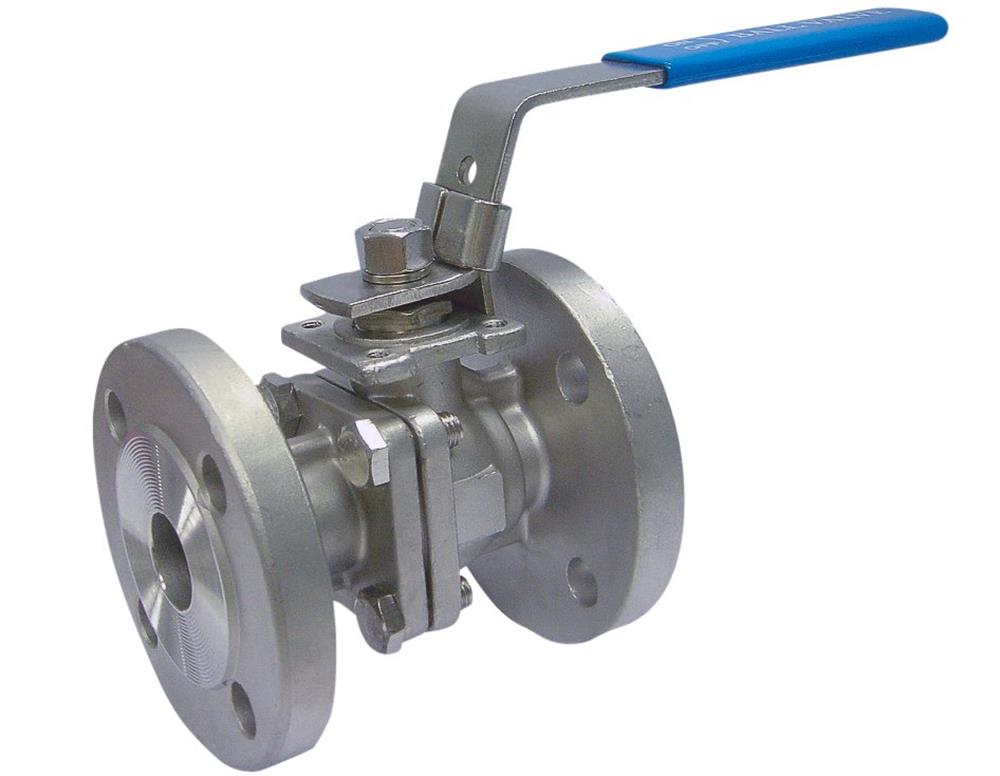

2-piece Ball Valve flange 316/316/PTFE. Ball valves with flange (Technique / Industrial valves / Ball valves). Principal data: dn dimension 32, pressure pn 16 bar, top flange F05/10mm. Supplied under manufacturer part number VF10384160, HS code 8481.80, country of origin Netherlands.
Technical Specifications
- Product type
- Ball valves with flange Product group: Industrial valves DN dimension: 32 Pressure PN: 16 bar Top flange: F05/10mm Temperature max: 200 °C Temperature min: -20 °C Length built-in dimension: 130 mm Bolt circle diameter: 100 mm House: acid-resistant 316 Ball / spindel: acid-resistant 316 ISO top flange: Indirekte montage Breakaway torque: 20 nm Passage: Full bore Connection: Flange W dimension: 205.5 mm H dimension: 109 mm H1 dimension: 78 mm H2 dimension: 29.5 mm D1 dimension: 50 mm M1 dimension: M6 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0164 kg CO2e per pcs Environmental declaration: LCA Country of origin: Netherlands Customs tariff code (EU CN): 84818081 HS code: 8481.80 Manufacturer part number: VF10384160 VVS number: 418543510
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN VF10384160
Product Documentation
