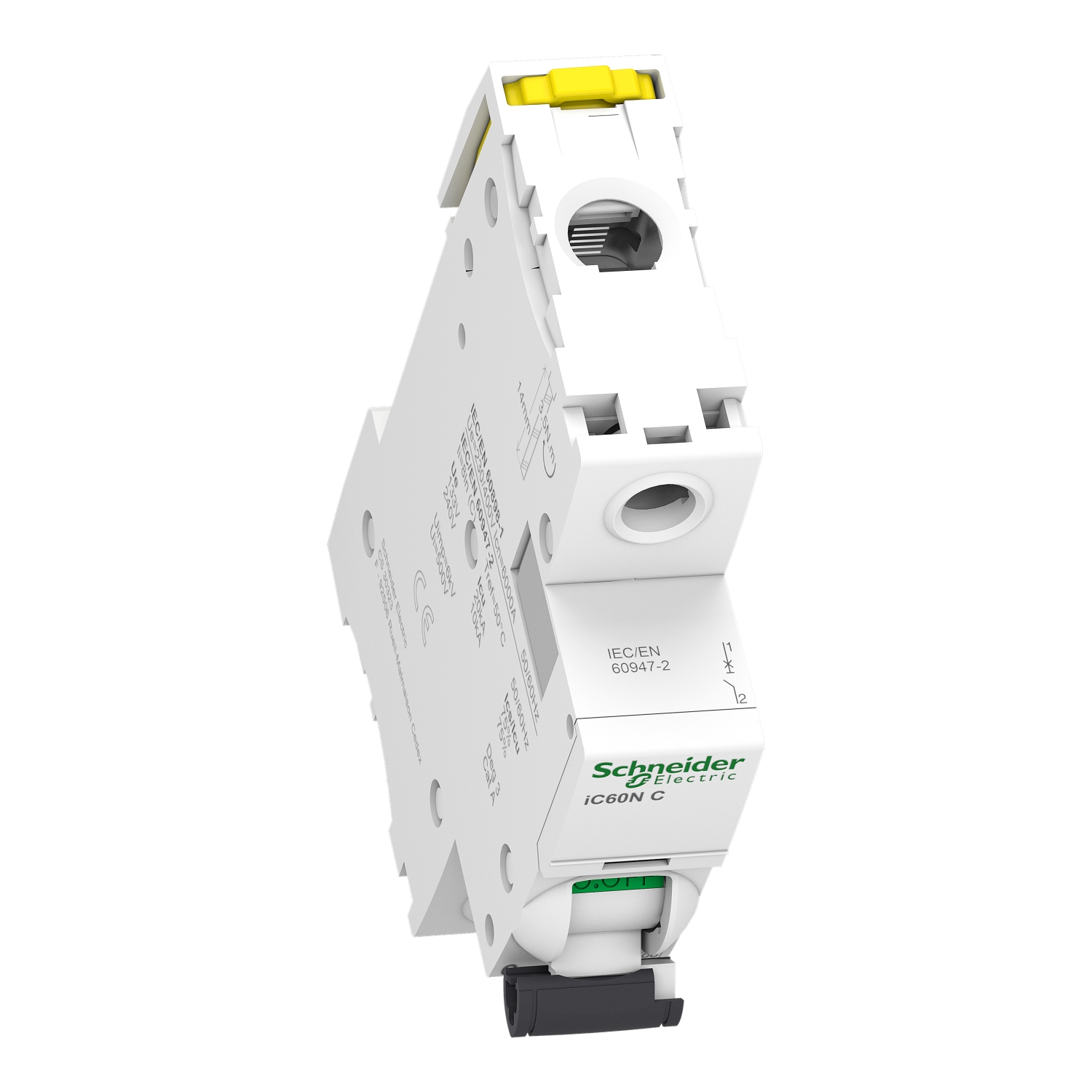

Acti 9 iC60N single-pole 40A C-curve MCB. 10kA breaking at 415V. Used as sub-distribution incomer or for high-current single-phase loads.
Acti 9 iC60N single-pole 40A C-curve MCB. 10kA breaking at 415V. Used as sub-distribution incomer or for high-current single-phase loads.
| Series | Acti 9 iC60N, Poles: 1P, Rated Current: 40A, Curve: C, Breaking Capacity: 10kA at 415V (IEC 60947-2), 6kA at 230/400V (IEC 60898-1), Rated Voltage: 230/400V AC, Width: 18mm (1 module), Mounting: 35mm DIN rail |
| Primary standard | IEC 60898-1; IEC 60947-2 |
Acti 9 modular system. Compatible with iOF/SD24 status contacts and Vigi RCD modules.
