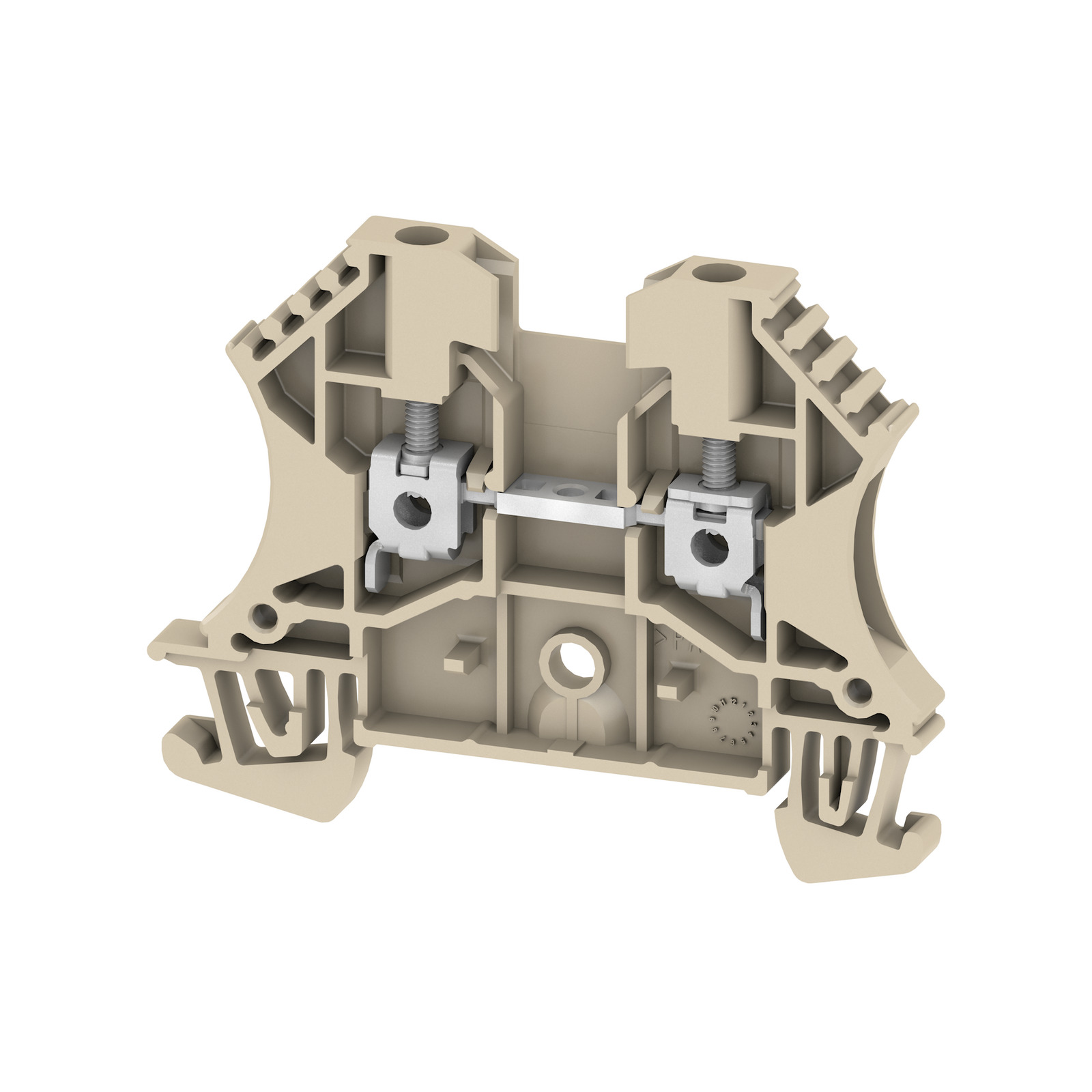

Weidmuller 1020000000 WDU 2.5 screw-connection feed-through terminal block for 2.5 mm² conductors. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units.
Weidmuller 1020000000 WDU 2.5 screw-connection feed-through terminal block for 2.5 mm² conductors. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units.
| Series | W |
| Type | Feed-through (WDU) |
| Connection | Screw |
| Cross section | 0.5–4 mm² (AWG 22–12) |
| Rated voltage | 800 V |
| Rated current | 24 A |
| Width | 5 mm |
| Color | Dark beige |
| Mounting | DIN rail TS 35 |
| Material | Polyamide PA66, copper alloy contacts |
| MOQ | 1 |
DIN-rail 35mm standard. Verify wire cross-section (mm²) and voltage rating.
