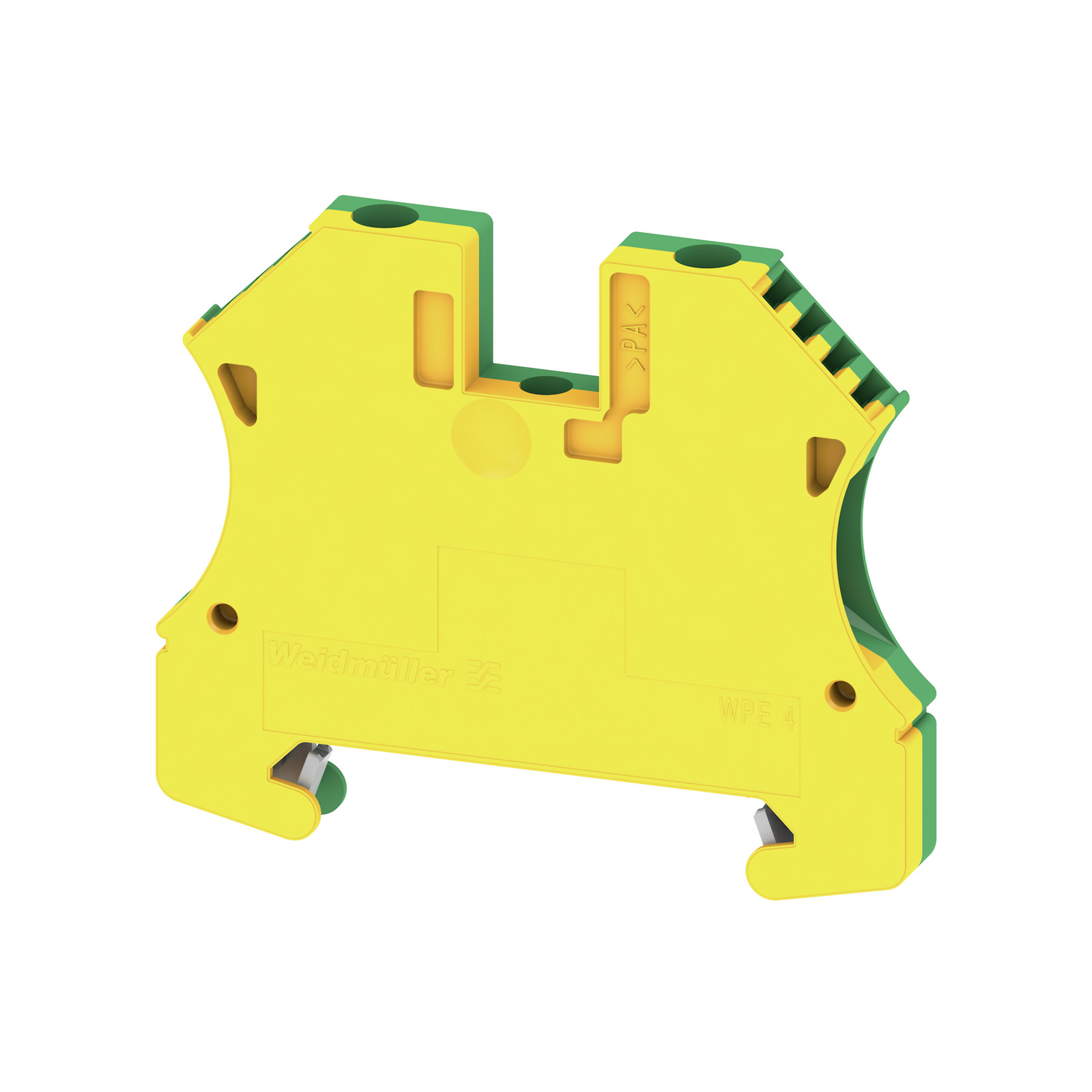

WPE 4 protective-earth terminal block with screw connection and direct DIN rail ground contact.
WPE 4 protective-earth terminal block with screw connection and direct DIN rail ground contact.
| Series | W |
| Type | Ground/PE (WPE) |
| Connection | Screw |
| Cross section | 0.5–6 mm² (AWG 22–10) |
| Rated voltage | 800 V |
| Rated current | 32 A |
| Width | 6.1 mm |
| Color | Green-Yellow |
| Ground contact | Direct to DIN rail |
| Material | Polyamide PA66, copper alloy contacts |
DIN-rail 35mm standard. Verify wire cross-section (mm²) and voltage rating.
