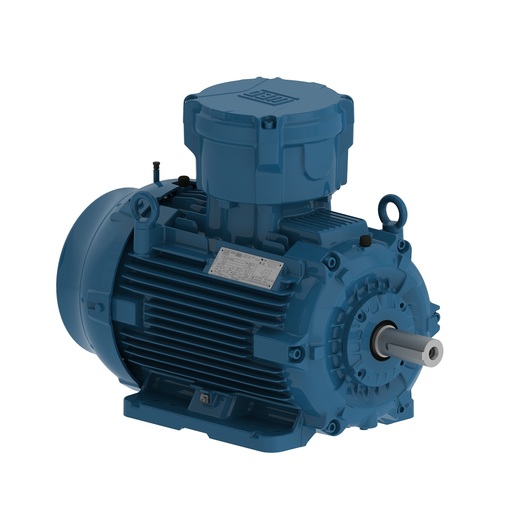

WEG W22X flameproof motor with IIC gas group rating for acetylene and hydrogen environments. Cast-iron frame for heavy cargo pump service.
WEG W22X flameproof motor with IIC gas group rating for acetylene and hydrogen environments. Cast-iron frame for heavy cargo pump service.
| Type | W22X 180M 4-pole Ex db IIC T4 |
| Power | 22 kW |
| Voltage | 400V/690V |
| Current | 41 A |
| Speed | 1470 rpm |
| Frame | 180M B3 |
| Efficiency | IE3 (92.3%) |
| Gas Group | IIC |
| Temp Class | T4 |
| IP Rating | IP55 |
| Material | Cast iron |
| Temperature range | -20°C to +40°C |
| IP rating | IP55 |
| Primary standard | IEC/EN 60079-1 |
| MOQ | 1 |
IIC rating suitable for acetylene/hydrogen. Pair with IIC-rated barrier glands.
