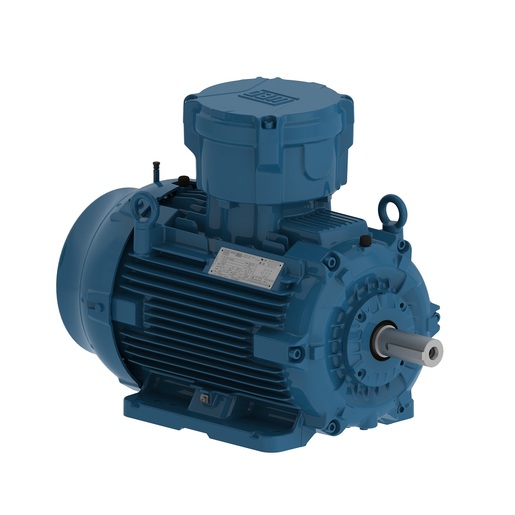

WEG W22X flameproof (Ex db) motor, the Brazilian industry standard for hazardous-duty applications.
WEG W22X flameproof (Ex db) motor, the Brazilian industry standard for hazardous-duty applications.
| Type | W22X 100L 4-pole Ex db IIB T4 |
| Power | 3.0 kW |
| Voltage | 380V/660V |
| Current | 6.4 A |
| Speed | 1730 rpm |
| Frame | 100L B3 |
| Efficiency | IE3 (87.7%) |
| Gas Group | IIB |
| Temp Class | T4 |
| IP Rating | IP55 |
| Material | Cast iron |
| Temperature range | -20°C to +40°C |
| IP rating | IP55 |
| Primary standard | IEC/EN 60079-1 |
| MOQ | 1 |
Ex d flameproof terminal box. Use WEG CFW-11 drive for VFD operation.
