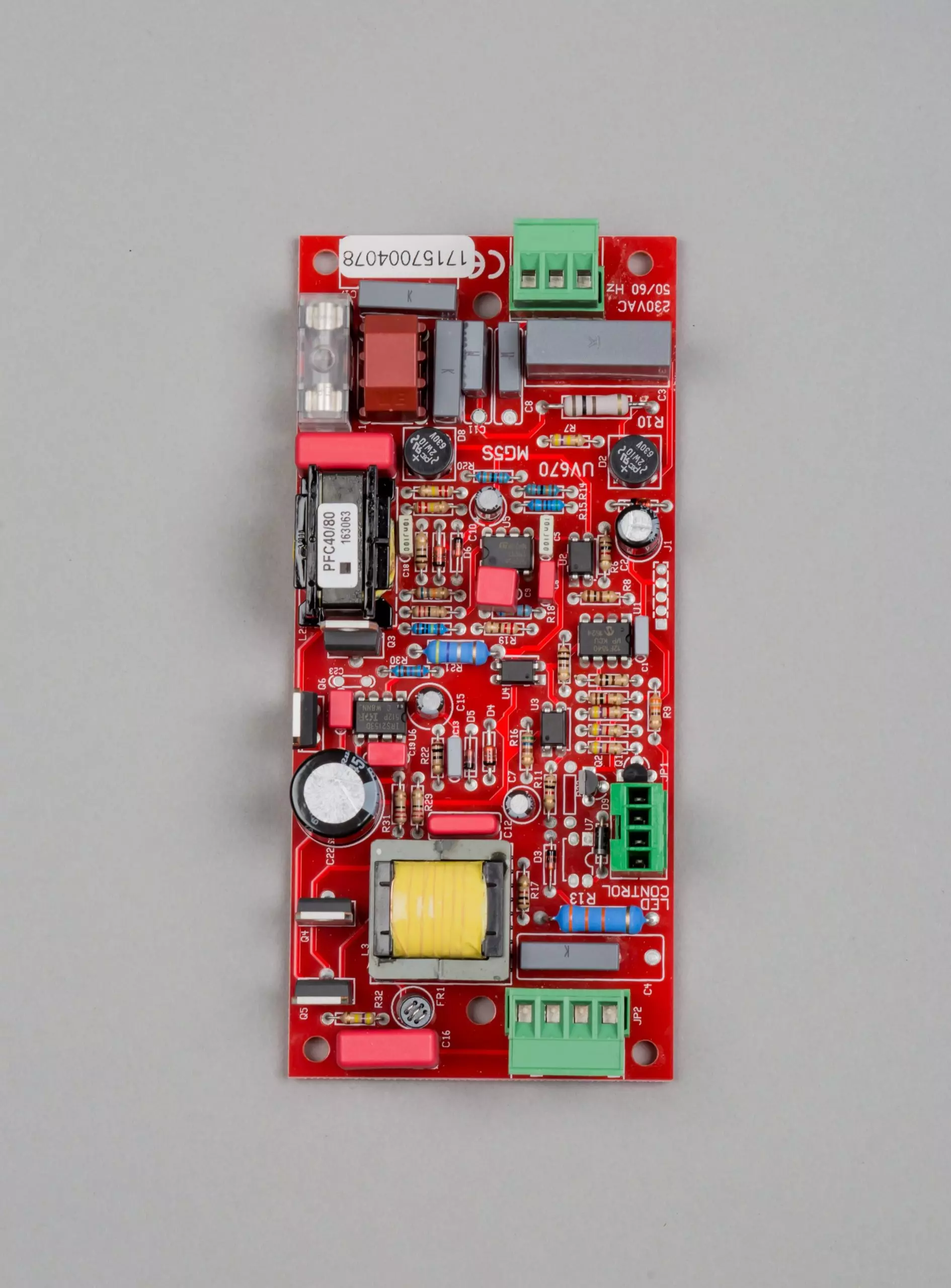

UV Lamp Starter UV670, MG5/08, 30/40 W, for SITA (3823-0812)

SITA · Electrochlorination & Water Treatment · Ballasts & Electronics · Italy · sitauv.com
Part Number
UV670  ·  HS 8504.10
UV Lamp Starter UV670, MG5/08, 30/40 W, for SITA (3823-0812)

UV Lamp Starter UV670, MG5/08, 30/40 W, for SITA, article 3823-0812. OEM reference: UV670 / MG5/08. Fits: SITA 800 Plus LCD, SITA Pallas 705 S. The lamp starter or electronic ballast must match the lamp type, the lamp wattage and the control panel generation. Quote the panel model (LCD, Rack LCD, Plus, 400 MODBUS) and the marking on the installed card with the order. SITA LCD / Rack LCD series data: low-pressure 40-80 W lamps, 9,000-10,000 h lamp life, 1-40 m3/h, chamber in AISI 304 or 316L. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Technical Specifications

Part numberUV670
Article number3823-0812
OEM referenceUV670 / MG5/08
System manufacturerS.I.T.A. srl (SITA UV), Italy
Component typeLamp starter / electronic ballast
Lamp rating30 / 40 W
FitsSITA 800 Plus LCD, SITA Pallas 705 S
HS code8504.10

Properties

MOQ1

Compatibility

Fits: SITA 800 Plus LCD, SITA Pallas 705 S
