Gland for SITA Quartz Sleeve 40-80 Series, SI028060 (3804-0508)

SITA · Electrochlorination & Water Treatment · UV System Parts · Italy · sitauv.com
Part Number
SI028060  ·  HS 8421.99

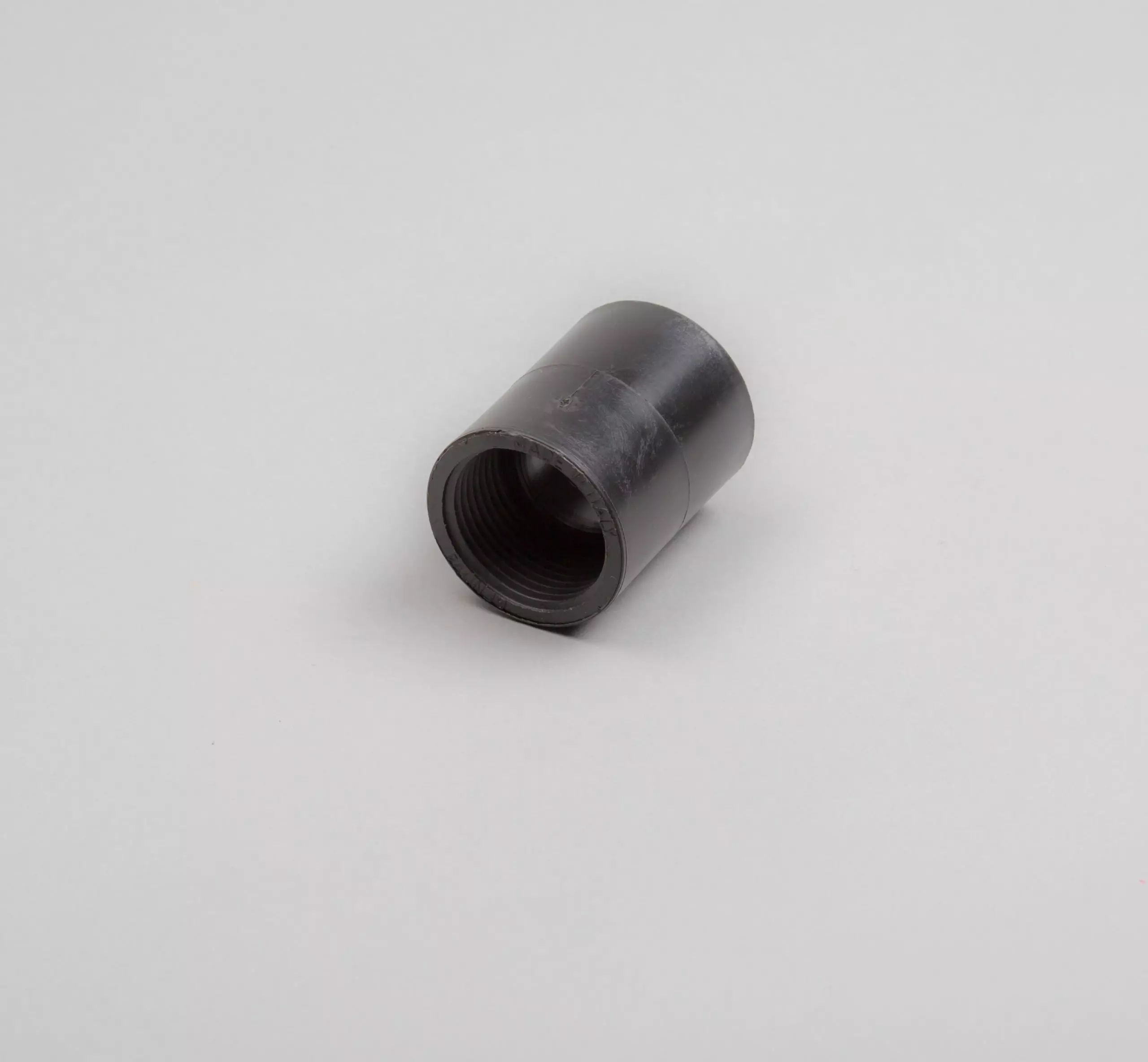

Gland for SITA Quartz Sleeve 40-80 Series, SI028060 (3804-0508)

Gland for SITA Quartz Sleeve 40-80 Series, SI028060, article 3804-0508. OEM reference: SI028060 / 028060. Fits: SITA 800 Plus LCD, SITA 40-80 series. Compresses O-ring SI028061 (23 x 4 mm) on quartz sleeve SI028105. Mechanical part of the UV chamber, the quartz sleeve holder or the sleeve cleaning (wiper) system. Confirm against the system model, serial number and year of manufacture, since the 400 series has been built in more than one version. SITA LCD / Rack LCD series data: low-pressure 40-80 W lamps, 9,000-10,000 h lamp life, 1-40 m3/h, chamber in AISI 304 or 316L. Spare part for UV disinfection systems of S.I.T.A. srl, Genoa, Italy, which builds low-pressure, amalgam and medium-pressure UV units for drinking water, food and beverage, aquaculture, swimming pool, marine and wastewater duty (series AL, LCD / Rack LCD, AM, IT, 440, HDPE, SBT, SMP, SSD, TOC, GR and Pool).

Technical Specifications

Part numberSI028060
Article number3804-0508
OEM referenceSI028060 / 028060
System manufacturerS.I.T.A. srl (SITA UV), Italy
Component typeUV chamber / sleeve holder / wiper part
FitsSITA 800 Plus LCD, SITA 40-80 series
HS code8421.99

Properties

MOQ1

Compatibility

Fits: SITA 800 Plus LCD, SITA 40-80 series

Cross-References

Attached Documents
