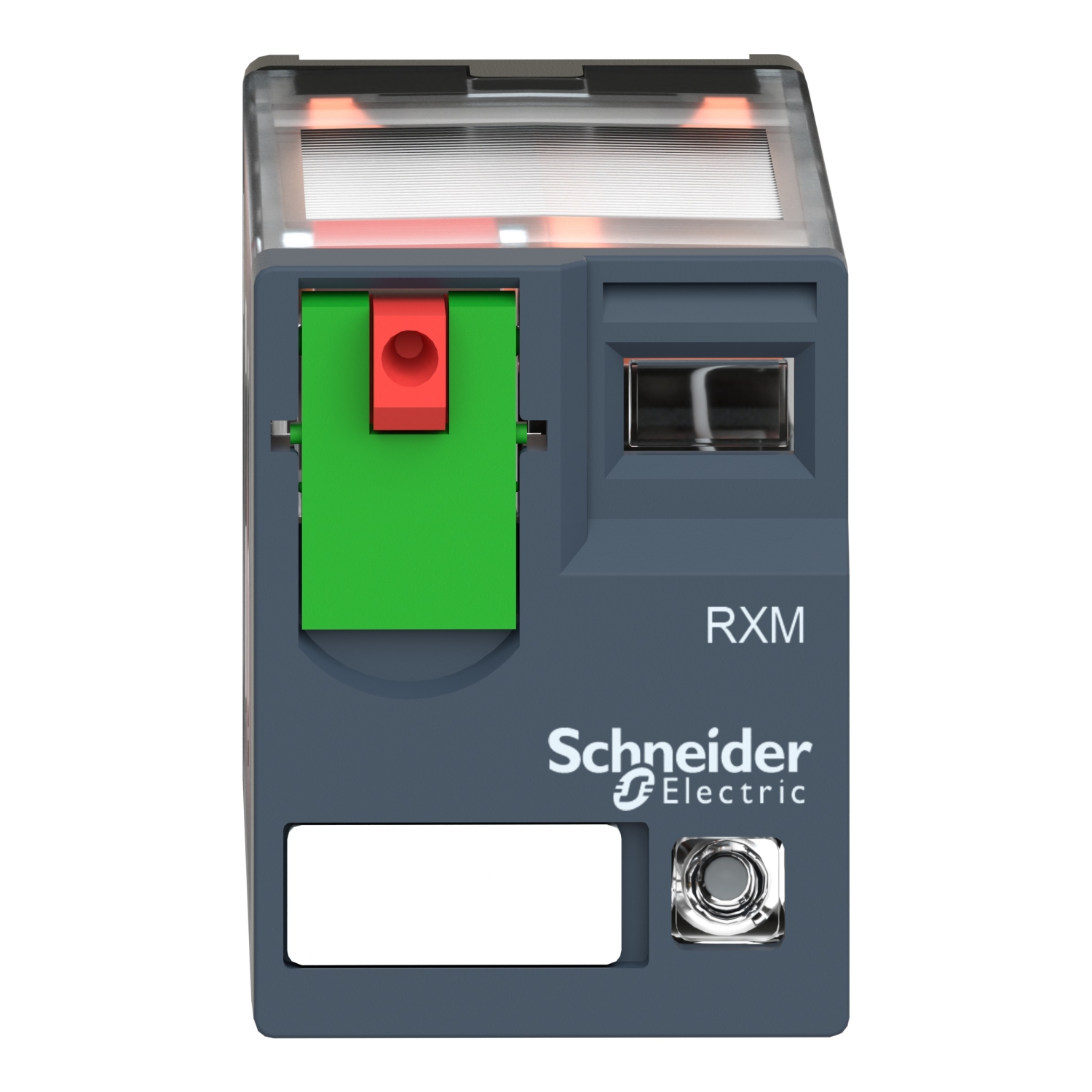

Schneider Electric RXM4AB2P7 Zelio RXM4 miniature plug-in relay, 4 changeover contacts 6A, 230V AC coil, 14-pin round base. Mechanical flag indicator. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units.
| Series | Zelio Relay RXM |
| Contacts | 4 C/O, 6A, 250V AC |
| Coil Voltage | 230V AC |
| Pinout | 14-pin round (DIN 41612) |
| Indicator | Mechanical flag + LED option |
| Mounting | Socket RXZE2M114M (screw) or RXZE2S114M (spring) Voltage: 230 V Rated current: 6 A Range of product: Harmony Electromechanical Relays Series name: RXM series Product or component type: Plug-in relay Relay type: Miniature relay Contacts type and composition: 4 C/O status LED: With Control type: Lockable test button [Uc] control circuit voltage: 230 V AC 50/60 Hz [Ithe] conventional enclosed thermal current: 6 A Continuous output current: 5 A [Uimp] rated impulse withstand voltage: 2.5 kV during 1.2/50 µs [Ie] rated operational current: 3 A at 28 V (DC) NC conforming to IEC; 3 A at 250 V (AC) NC conforming to IEC; 6 A at 28 V (DC) NO conforming to IEC; 6 A at 250 V (AC) NO conforming to IEC; 6 A at 277 V (AC) conforming to UL; 8 A at 30 V (DC) conforming to UL minimum switching capacity: 170 mW at 10 mA, 17 V Electrical durability: 100000 cycles for resistive load Average coil consumption in VA: 1.2 at 60 Hz Rated operational voltage limits: 184...253 V AC [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL Average consumption: 1.2 VA at 60 Hz Maximum switching voltage: 250 V conforming to IEC Drop-out voltage threshold: >= 0.15 Uc Load current: 6 A at 250 V AC; 6 A at 28 V DC Operating time: 20 ms Maximum switching capacity: 1500 VA/168 W Average resistance: 15000 Ohm at 20 °C +/- 15 % Mechanical durability: 10000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 1200 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % CAD overall height: 82.8 mm CAD overall depth: 80.35 mm Reset time: 20 ms Dielectric strength: 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation Compatibility code: RXM Protection category: RT I Pollution degree: 2 Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Contacts material: AgNi Shape of pin: Flat (faston type) Product weight: 0.037 kg Ambient air temperature for operation: -40…55 °C IP degree of protection: IP40 conforming to IEC 60529 Standards: CSA C22.2 No 14; IEC 61810-1; UL 508 Product certifications: UL; Lloyd's; CE; CSA; GOST; IECEE CB Scheme Ambient air temperature for storage: -40…85 °C Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation; 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating Shock resistance: 10 gn for in operation; 30 gn for not operating Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 240 Country of origin: CN Warranty (in months): 18 EAN: 3389119403887 |
| Primary standard | IEC 61810; UL 508 |
| MOQ | 1 |
Plugs into 14-pin Zelio sockets RXZE2M114M (screw) / RXZE2S114M (spring). LED+diode option modules available.
