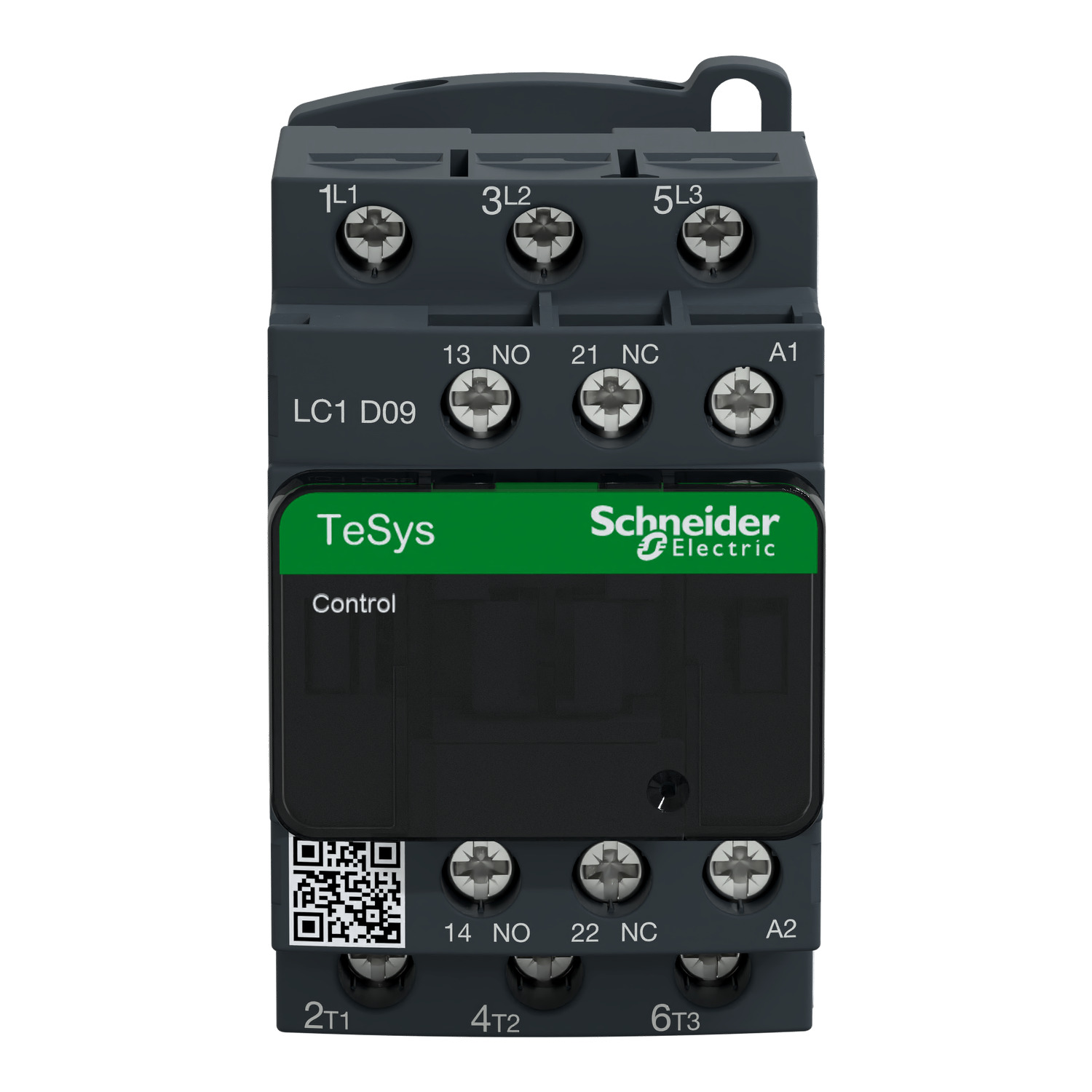

TeSys D LC1D09 three-pole AC contactor, 9A / 4kW at 400V AC-3, 220V AC 50/60Hz coil, 1NO+1NC auxiliary, screw-clamp terminals.
TeSys D LC1D09 three-pole AC contactor, 9A / 4kW at 400V AC-3, 220V AC 50/60Hz coil, 1NO+1NC auxiliary, screw-clamp terminals.
| Series | TeSys D, Poles: 3P, Rated Current A C3: 9A, Rated Power A C3: 4kW at 400V, Rated Current A C1: 25A, Coil Voltage: 220V AC 50/60Hz, Auxiliary Contacts: 1NO + 1NC integrated, Terminal Type: Screw clamp, Width: 45mm, Mounting: 35mm DIN rail or screw |
| Material | Thermoplastic housing, silver alloy contacts |
| Temperature range | -25°C to +55°C (ambient) |
| Primary standard | IEC 60947-4-1; UL 508 |
Compatible with LAD4/LADN auxiliary blocks, LAEN11 interlock, LA1DN lug kit; pairs with LRD-series thermal overloads.
