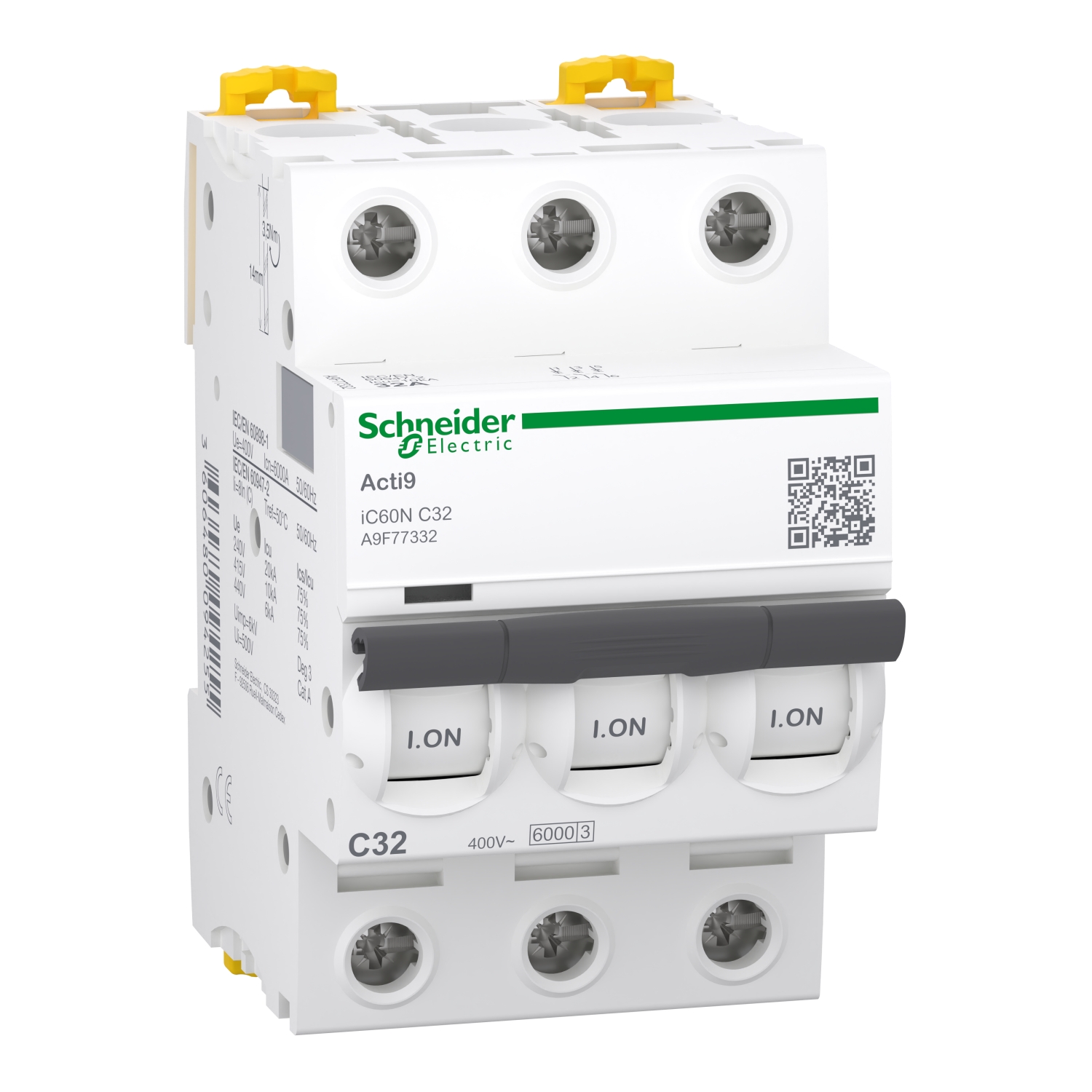

Acti 9 iC60N three-pole 32A C-curve MCB. 10kA breaking at 415V. Common rating for medium three-phase motors (~15kW at 400V) and sub-distribution feeds.
Acti 9 iC60N three-pole 32A C-curve MCB. 10kA breaking at 415V. Common rating for medium three-phase motors (~15kW at 400V) and sub-distribution feeds.
| Series | Acti 9 iC60N, Poles: 3P, Rated Current: 32A, Curve: C, Breaking Capacity: 10kA at 415V (IEC 60947-2), 6kA at 415V (IEC 60898-1), Rated Voltage: 400/415V AC, Width: 54mm (3 modules), Mounting: 35mm DIN rail |
| Primary standard | IEC 60898-1; IEC 60947-2 |
Acti 9 system; use with TeSys LRD overload relays for downstream motor circuits.
