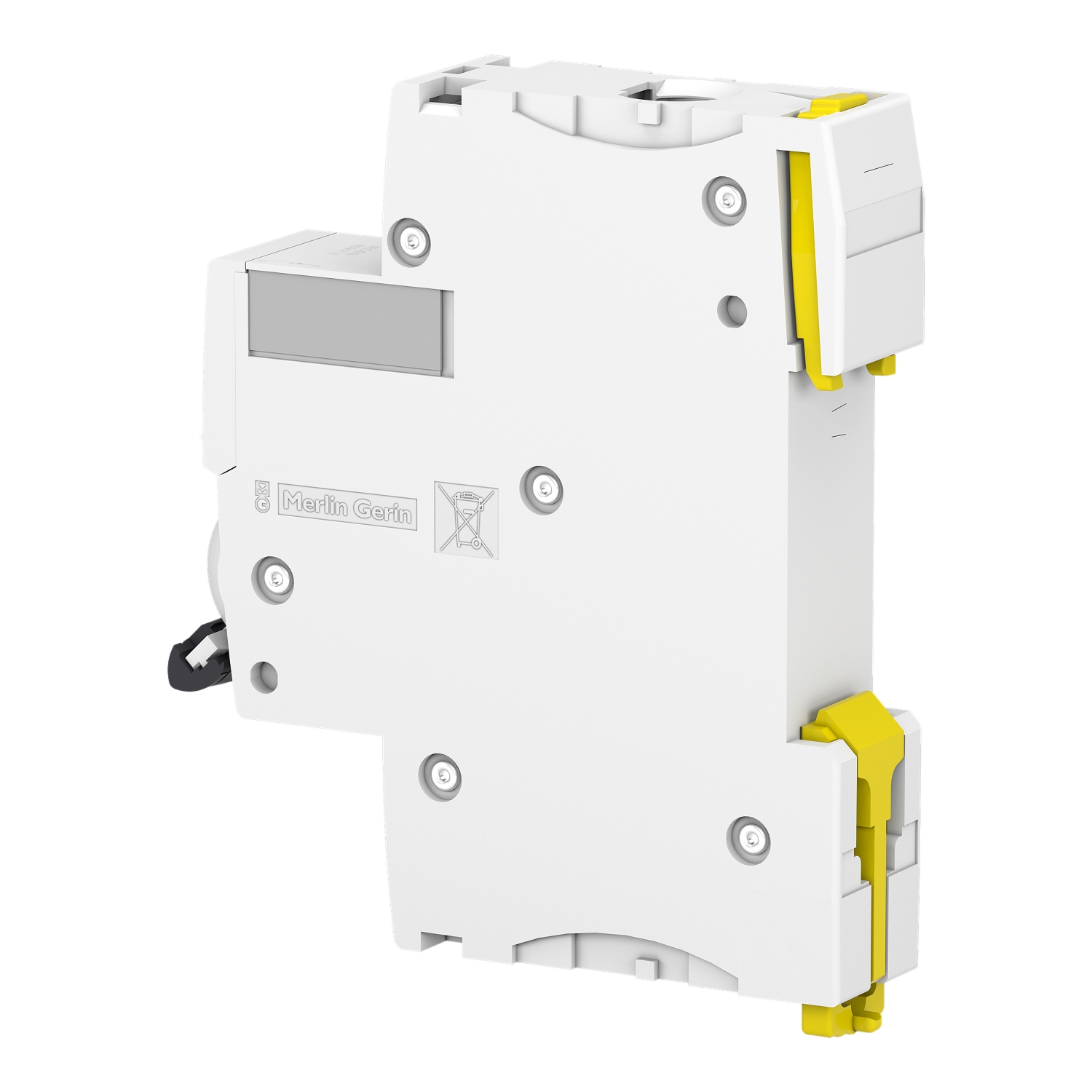

Acti 9 iC60N single-pole 63A C-curve MCB. 10kA breaking at 415V. Maximum single-pole rating in the iC60N range, used for sub-board incomers.
Acti 9 iC60N single-pole 63A C-curve MCB. 10kA breaking at 415V. Maximum single-pole rating in the iC60N range, used for sub-board incomers.
| Series | Acti 9 iC60N, Poles: 1P, Rated Current: 63A, Curve: C, Breaking Capacity: 10kA at 415V (IEC 60947-2), 6kA at 230/400V (IEC 60898-1), Rated Voltage: 230/400V AC, Width: 18mm (1 module), Mounting: 35mm DIN rail |
| Primary standard | IEC 60898-1; IEC 60947-2 |
Acti 9 modular system. Compatible with iOF/SD24 contacts; combine with Vigi iC60 RCD block for RCBO function.
