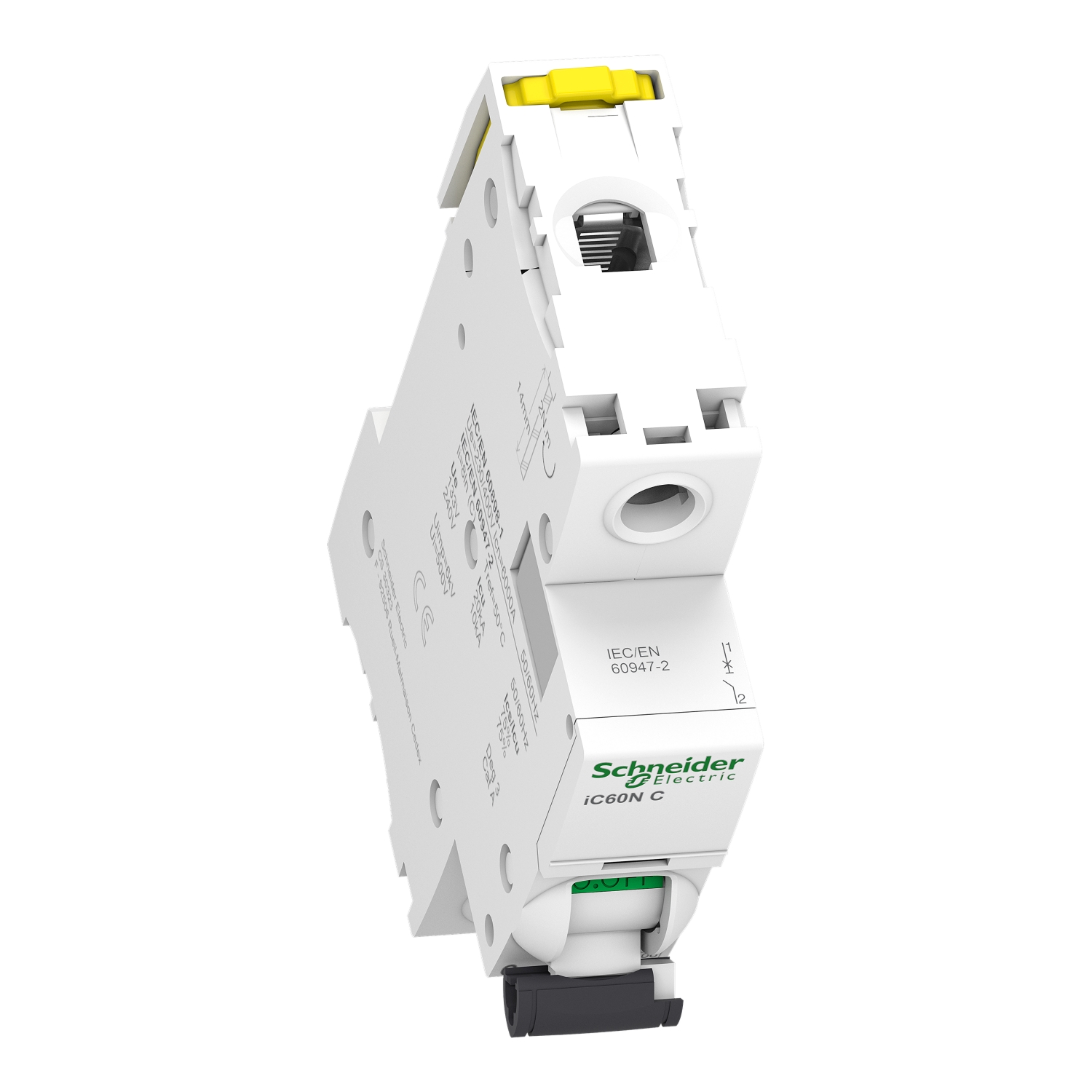

Schneider Acti 9 iC60N MCB 1P 20A C-Curve

Name: Schneider Acti 9 iC60N MCB 1P 20A C-Curve
Brand: Schneider Electric
SKU: CB-SCH-004

Schneider Electric · Switchgear & Protection · Circuit Breakers · France · se.com

Part Number
A9F77120 · HS 8536.20

Schneider Acti 9 iC60N MCB 1P 20A C-Curve

Acti 9 iC60N single-pole 20A C-curve MCB. 10kA breaking at 415V per IEC 60947-2.

Technical Specifications

Series

Acti 9 iC60N, Poles: 1P, Rated Current: 20A, Curve: C, Breaking Capacity: 10kA at 415V (IEC 60947-2), 6kA at 230/400V (IEC 60898-1), Rated Voltage: 230/400V AC, Width: 18mm (1 module), Mounting: 35mm DIN rail

Properties

Primary standard

IEC 60898-1; IEC 60947-2

Compatibility

Compatible with full Acti 9 modular accessory range: Vigi RCDs, auxiliary contacts, motor operators, undervoltage releases.

Standards

IEC 60947-2
IEC 60898-1
DIN rail
IEC 60947-2.

Approvals

CE
EAC
RoHS
