LAPP SKINTOP ST-M 20X1.5 Plastic Cable Gland

LAPP · Cables & Wiring · Cable Glands · Germany · lapp.com
Part Number
53111020  ·  HS 7326.90

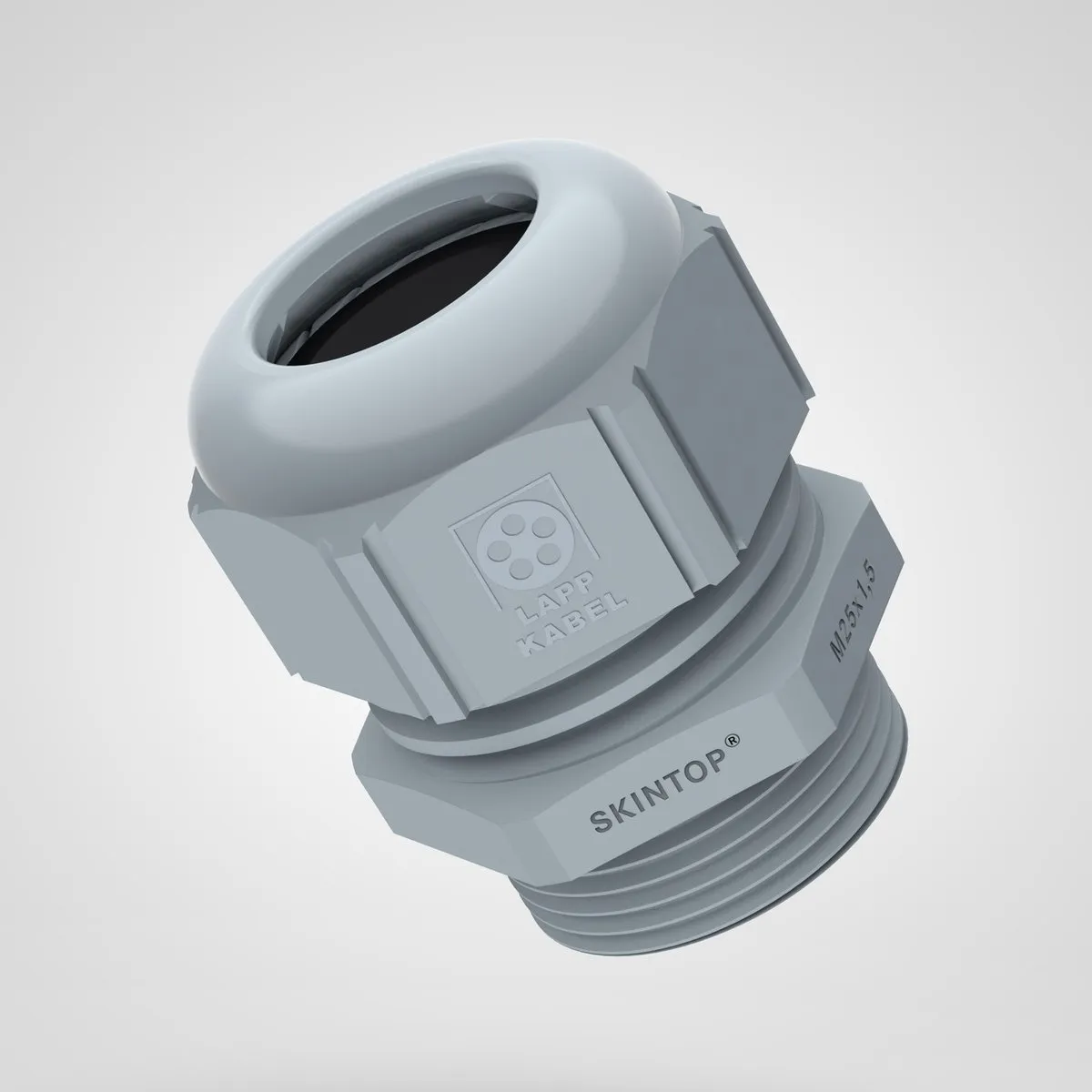

LAPP SKINTOP ST-M 20X1.5 Plastic Cable Gland

LAPP SKINTOP ST-M 20x1.5 plastic cable gland, code 53111020. Polyamide 6 body with metric M20×1.5 thread, cable OD range 7-13 mm. IP68 rated (5 bar water pressure). Applications: control cabinet cable entries, marine equipment, general industrial where a non-metallic gland is required (weight, RF, or galvanic-isolation reasons). See our cable gland selection guide for the full range and Ex/ATEX variants.

Technical Specifications

MaterialPolyamide PA6
Temperature range-20°C to +100°C
IP ratingIP68
ApprovalIP68, ATEX (where applicable)
StandardsIEC 60079-0, IEC 60079-1, IEC 60079-7
ApprovalsATEX, IP68
HS code7326.90

Properties

MaterialPolyamide PA6
Temperature range-20°C to +100°C
IP ratingIP68
MOQ1

Compatibility

Verify thread (M16/M20/M25/M32/M40), cable range (mm), and IP/ATEX rating.

Standards

Approvals

Attached Documents
